HOME > PRODUCTS > Ultrasonic Sound Transmitter > YUG41 Serie

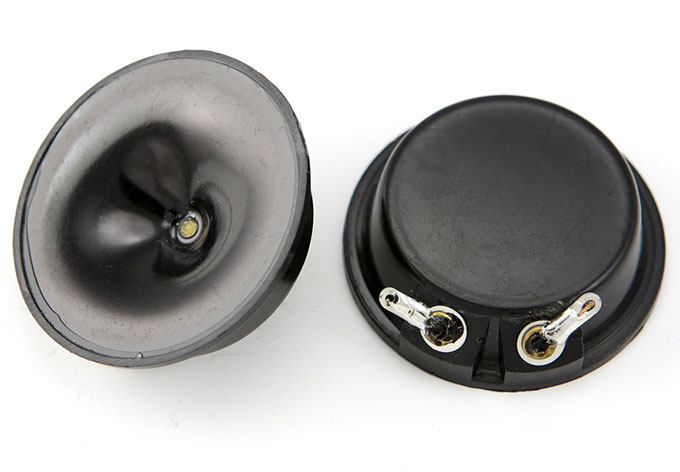

YUG41
Amount of reading：，Release time：2014-03-04 16:22:04
Products Details
Technical Data
Rated Voltage (Vrms) 2.83
额定电压
Operating Voltage (Vrms) 1~20
Operating Voltage (Vrms) 1~20
工作电压
Sound Pressure Level (dB) ≥90
Sound Pressure Level (dB) ≥90
输出声压
Resonance Freq (Hz) 40000±5000
Resonance Freq (Hz) 40000±5000
共振频率
Rated Freq Range (Hz) 2500~50000
Rated Freq Range (Hz) 2500~50000
额定频率范围
Operating Temp ( ℃) -20~+70
操作温度
Storage Temp ( ℃) -30~+80
储存温度
Material Mylar Cone/Black
材质
操作温度
Storage Temp ( ℃) -30~+80
储存温度
Material Mylar Cone/Black
材质

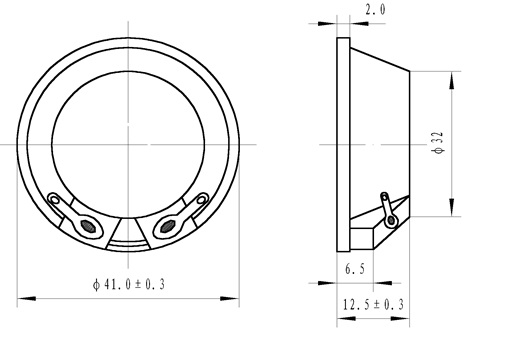

Drawing
Packing
