HOME > PRODUCTS > SMT Piezo Transducer > YSPT15A Serie
YSPT15A-H7.4-V5-F4.0-C15
Amount of reading：，Release time：2014-09-26 8:46:30
Products Details
Technical Data
Operating Voltage (Vp-p) 1~25
工作电压
Rated Voltage (Vp-p) 5
额定电压
Current Consumption (mA) max.5
损耗电流
Resonance Frequency (Hz) 4000±500
频率
Capacitance at120Hz (pF) 15000±30%
电容量

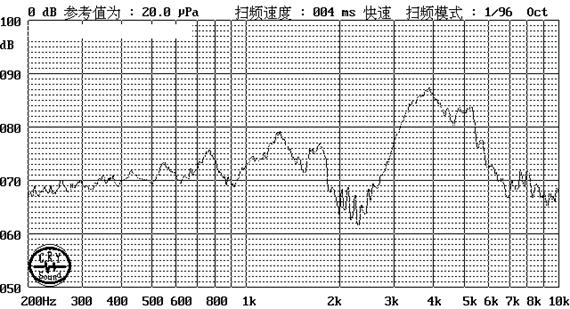

Sound Pressure Level (dB) min.80
输出声压
Operating Temperature (℃) -40 ~ +80
工作温度
Storage Temperature (℃) -40 ~ +85
储存温度
Material LCO/Black
材质
Pad plating Plated Brass(Au)
焊盘镀层
Drawing
Tape&Reel
300PCS/Reel 1200~3000PCS/Carton
