HOME > PRODUCTS > SMT Piezo Transducer > YSPT22B Serie

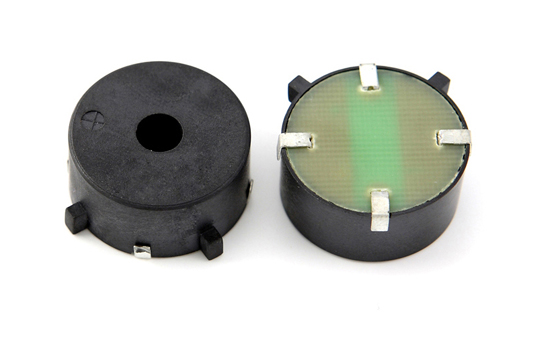

YSPT22B-H11-V12-F4.0-C19
Amount of reading：，Release time：2014-09-26 8:47:37
Products Details
Technical Data
Operating Voltage (Vp-p) 1~25
工作电压
Rated Voltage (Vp-p) 12
额定电压
Current Consumption (mA) max.12
损耗电流
Resonance Frequency (Hz) 4000
频率
Capacitance at120Hz (pF) 19000±30%
电容量

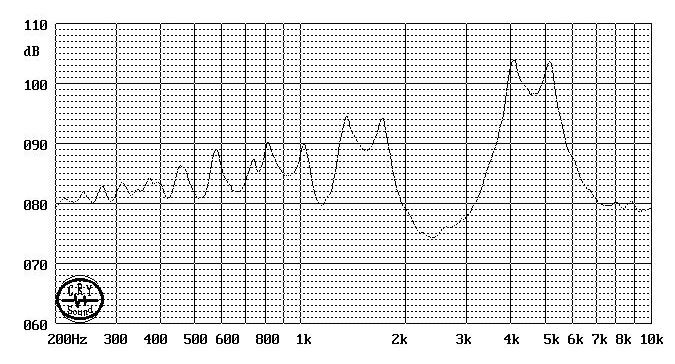

Sound Pressure Level (dB) min.100
输出声压
Operating Temperature (℃) -40 ~ +80
工作温度
Storage Temperature (℃) -40 ~ +85
储存温度
Material PPS/Black
材质
Pad plating Tin Plated Brass(Sn)
焊盘镀层

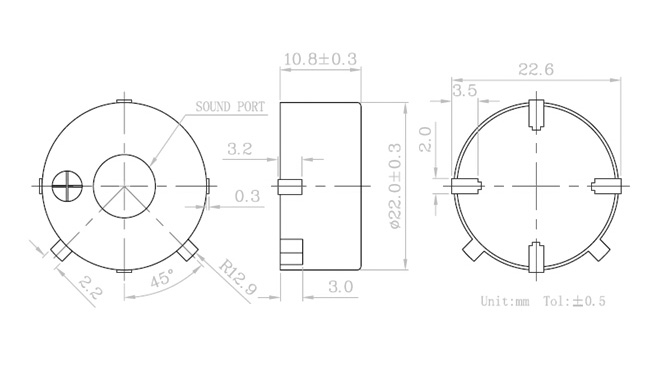

Drawing
Tape&Reel
150PCS/Reel 1500PCS/Carton
