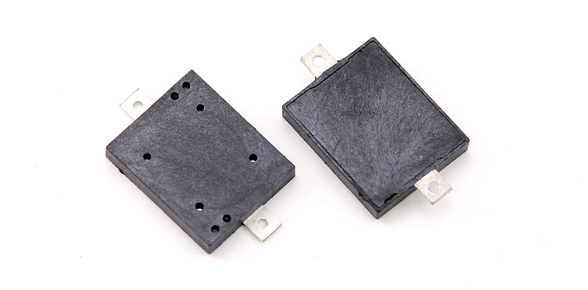

HOME > PRODUCTS > SMT Piezo Transducer > YSPT11C Serie
If you want to read specification, please click  link . |
Photo |
Part Number |
Description |
Specification |
 |
|
Operating Voltage (Vp-p) 1~25 Rated Voltage (Vp-p) 5 Resonance Frequency (Hz) 4100±500 Capacitance at120Hz (pF) 10000±30% Sound Pressure Level (dB) min.70 Operating Temperature (℃) -40 ~ +80 Storage Temperature (℃) -40 ~ +85 |
|
